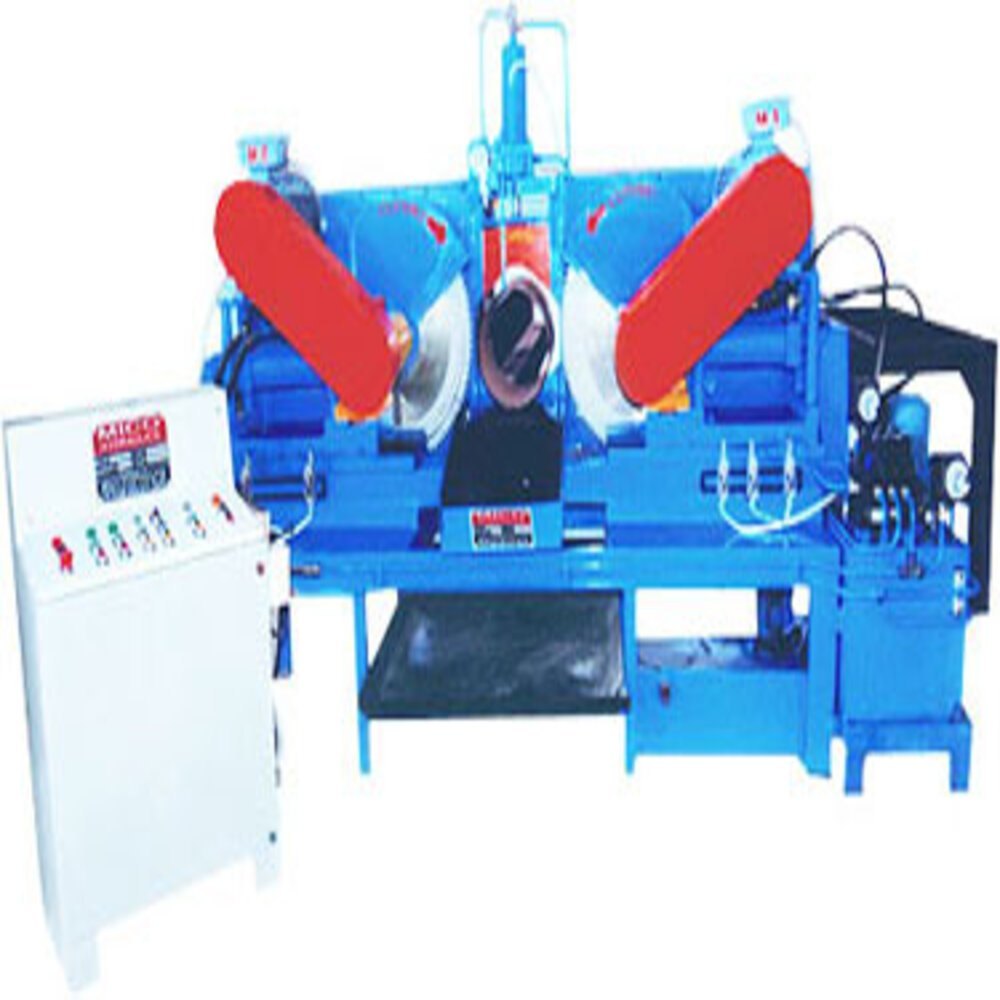

Double Billet Cutting Machine

Double Billet Cutting Machine Specification

Drive Motor
Heavy duty induction motor

Product Type
Metal cutting equipment

General Use
Billet cutting in steel and metal industries

Material
Alloy steel structure

Type
Double Billet Cutting Machine

Capacity
2 billets per cutting cycle

Weight (kg)
Approx. 3500 kg

Computerized
Yes

Cutting Thickness
Up to 200mm

Cutting Function
Double billet simultaneous cutting

Cooling System
Water cooling

Drive Type
Hydraulic

Voltage
380V / 415V, 3 Phase

Dimension (L*W*H)
4000mm x 1200mm x 1600mm

Feature
Easy to operate, high precision, robust design

Color
Blue & grey

Motor
10 HP main drive motor

Mechanical Precision
0.1 mm

Software Detail
PLC based control system

Cutting Method
Hydraulic rotary cutting

Control System
PLC based digital panel

Cutting Material
Mild steel, alloy steel billets

Cutting Area
Up to 200mm diameter billets

Double Billet Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1

About Double Billet Cutting Machine

Our company is specialized in manufacturing, exporting and supplying superior quality Double Billet Cutting Machine. Offered machine is assembled by utilizing optimal quality components and innovative technology as per international quality standards. This machine is widely used for cutting of metals. Our clients can avail this Double Billet Cutting Machine from us at market leading prices.

Features:

Low maintenance
Long service life
Hassle free performance
Less power consumption

Advanced Precision & Double Cutting Performance

Engineered for simultaneous double billet cutting, this machine delivers high accuracy with a cutting tolerance of 0.1 mm. Its hydraulic rotary cutting mechanism and strong alloy steel structure ensure long-term stability and consistent performance, making it indispensable for high-volume industrial operations.

Intuitive Digital Control System

The PLC-based digital panel with a touchscreen HMI provides intuitive, computerized control, simplifying setup and operation. Automatic lubrication and water cooling systems reduce maintenance needs, while built-in safety features enhance operator confidence and workplace safety standards.

FAQs of Double Billet Cutting Machine:

Q: How does the Double Billet Cutting Machine achieve precise cuts?

A: The machine utilizes a PLC-based control system and a hydraulic rotary cutting method, combined with a hardened tungsten carbide blade, to deliver high precision cuts with an accuracy of 0.1 mm for billets up to 200mm in diameter.

Q: What safety features are included in this cutting machine?

A: For enhanced safety, the machine features an emergency stop button and guard protection, ensuring immediate shutdown and operator safety during cutting operations.

Q: When should the machine undergo routine maintenance?

A: Regular inspections are recommended in line with your operational hours. Fortunately, the integrated automatic centralized lubrication system significantly reduces manual maintenance, but periodic checks and water cooling system maintenance are advised.

Q: Where is the ideal location for installing this machine?

A: The Double Billet Cutting Machine is floor-mounted and should be installed in industrial environments with temperatures ranging from 5C to 45C and sufficient floor space to accommodate its dimensions (4000mm x 1200mm x 1600mm).

Q: What is the process for operating the Double Billet Cutting Machine?

A: Operation involves placing the billets within the cutting area, configuring the touchscreen HMI for desired parameters, and initiating the automated PLC-controlled cutting cycle. The system manages the double billet simultaneous cutting with minimal manual intervention.

Q: How does the cooling system benefit the cutting process?

A: The water cooling system actively reduces heat build-up during cutting operations, which preserves blade lifespan and maintains cutting precision, even during extended production runs.
